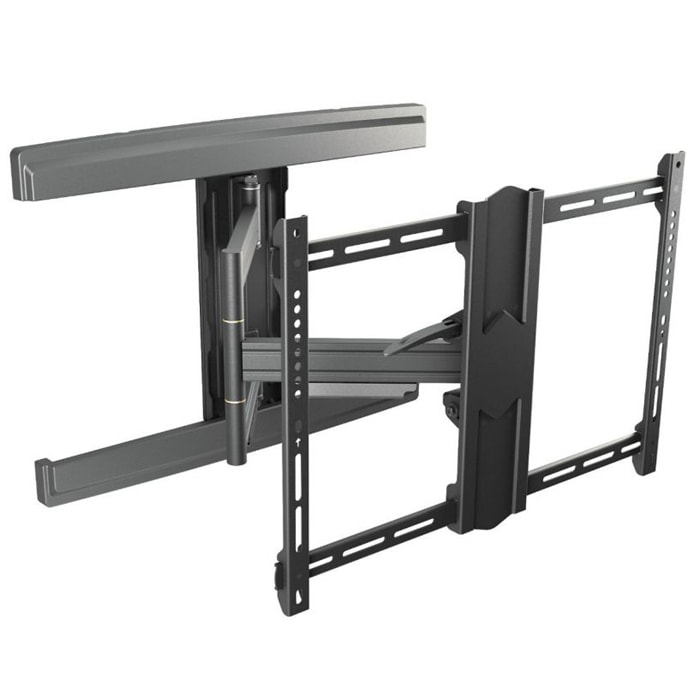

This TV Wall mount delivers extreme flexibility, allowing the mounted display to be adjusted laterally, up/down, and rotationally. It is universal to suit most applications that require full motion adjustment, supporting VESA patterns for landscape and portrait orientation.
Once installed, the TV wall mount holds the display snug against the wall with profile 2.8” (70mm). It will extend to a maximum range of 25.6” (650mm). The mounting allows a full 180° lateral range, with easy +/-90° adjustment to face your audience wherever they are seated.
Extending this flexibility further, the mount allows +2° to -15° up/down tilt, and +/-3° rotational adjustment. Mounted at your desired height, these TV wall mounts ensures your screen is always facing exactly where you require.
These TV wall mounts are sleek and constructed of aluminium, with steel and plastic parts, and has integrated cable management. The unit is available in black, to blend unobtrusively with the decor when extended. It suits commercial, domestic, and light industrial environments, and is particularly useful in collaboration spaces where delegates need close-up review of shared documents, and in meeting rooms with multiple seating areas.
Designed for easy installation, these TV wall mounts arrive pre-assembled with all display mounting fasteners. Wall mounting hardware is not included.
- Screen size: 32 to 70 inches
- Max display weight: 110 lbs
- VESA mounting hole pattern: 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400
- Range of motion: Full motion
- Tilt adjustment: +2°/-15°
- Pan adjustment: +/-90°
- Horizontal leveling adjustment: +/-3°
- Landscape to portrait screen rotation: No
- Minimum distance from wall (inches): 2.75" (70mm)
- Maximum distance from wall (inches): 25.6" (650mm)
- Cable management: Discrete cable management
- Material: Aluminium, steel, and plastic
- Warranty: 10 years
|
|
|
 |
|
 |
|
