Heavy Duty TV Wall Mount for displays up to 200 lbs.

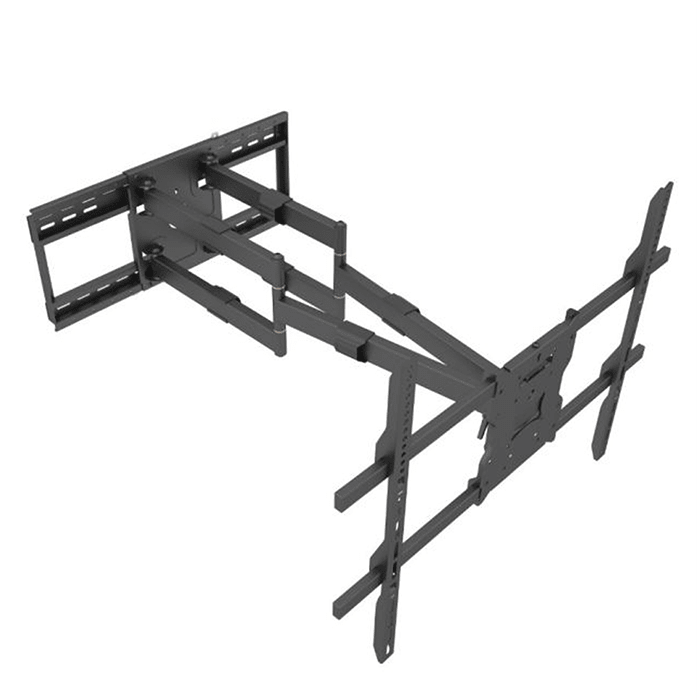

TV Wall Mount


This heavy duty TV wall mount supports displays up to 200 lbs and offers a very wide range of movement.

  • Maximum reach of 39 inches from mounting surface to the rear of the display
  • Recommended for displays from 50" to 100"
  • Lateral shift during installation
  • Pan, up/down tilt, and rotational adjustment with display mounted
  • VESA compatible from 100x100 up to 800x600
  • Integrated cable managment
  • Designed to mount on 24" wall studs
  • 'Pop-out' functionality for recessed displays
View Product Brochure
View Installation Guide
View Technical Specifications
Watch Installation Video

Price [USD]: $389.00
Sale Price [USD]: $376.00
Savings [USD]: $13.00

Shipping Lead Time: Usually Ships in 24 Hours
Product #: AT-AD-WM-9080

Select an Optional Accessory:
CPU Mount [Add $58.00]


This heavy duty TV wall mount is designed for large and/or heavy displays, in installations requiring full motion and extremely long arm extension. this TV mount enables the lateral shift of the centre of the display, upward and downward tilt, and rotational display adjustment – plus almost a meter extension from the wall. The mount accommodates use on stud walls with 24” stud spacing.

This TV wall mount is rated for 200 lbs (90.7kg) displays and a recommended size of 50” to 100”. When used with displays at the lower end of the size range, even greater freedom of movement is available.

The flexibility starts with precise display positioning, due to its +/- 7.9” (+/- 200mm) lateral shift capability. Lateral shift is done during installation or while the display is dismounted. Once installed, these TV wall mounts sit 4” (110mm) from the wall and can extend to a maximum distance of 39” (980mm). The mounted display can pan +/- 90°, tilt +5° to -10° upward and downward, and rotationally adjust +/- 5° for optimal audience viewing. Standard VESA patterns 100x100 to 200x200 are expanded on with universal mounting patterns to 800x600. These features make this heavy duty TV wall mount one of the most versatile and adaptive full motion wall mounts available.

Constructed primarily of steel for heavy duty operation and long service life, finished in black and has integrated cable management. It suits commercial, retail, domestic, and light industrial environments, and serves virtually all applications. Curved and displays with offset VESA exert different force that may affect the stated weight range, contact our mounting experts to discuss curved screen prior to order.
