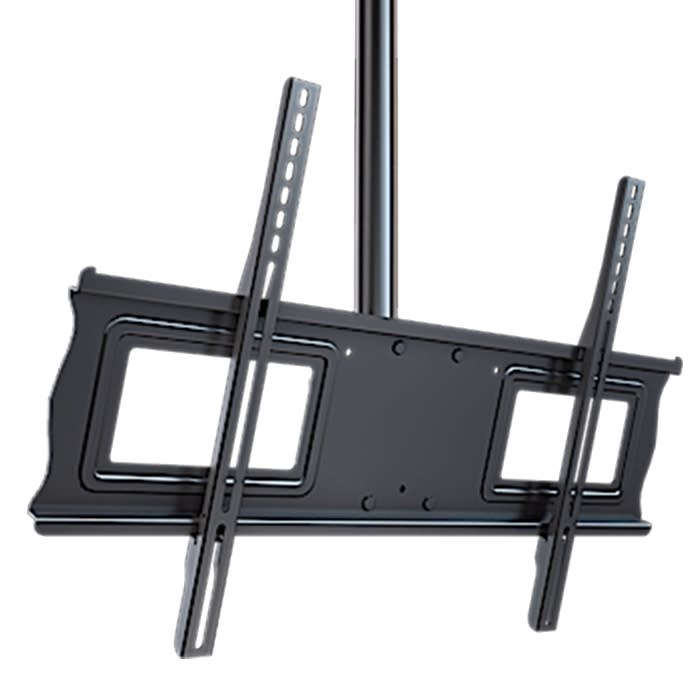

VESA Ceiling Mount for Screens up to 200 lbs.

This VESA ceiling mount attaches directly to a 1.5" threaded NPT pipe, either new or existing. Supports VESA 75x75 up to 600x400 hole patterns. Offers Continuous tilt of 20 degree forward with 360 degree rotation around the mounting pole.

Continuous tilt of 20° forward with 360° rotation. Pin-locking pre-set tilt positions at 5º, 10º, 15º and 20º.

Makes a secure screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the VESA adapter in place.

Offset Pole Adapter Part number CR-CA1 View PDF Technical Specs

4x4 Inch Pole Adapter Part number CR-CA4 View PDF Technical Specs

8x8 Inch Pole Adapter Part number CR-CA8 View PDF Technical Specs

Heavy duty 8x8" Pole Adapter for long drops Part number CR-CA8HDX View PDF Technical Specs

Dual Joist Pole Adapter Part number CR-CA2 View PDF Technical Specs

Truss Pole Adapter Part number CR-CAT3 View PDF Technical Specs

Vaulted Ceiling Pole Adapter for Angled Surfaces Part number CR-CAV1 View PDF Technical Specs

I-Beam Pole Adapter Part number CR-CAB1 View PDF Technical Specs

Single 1-5/8" Unistrut Pole Adapter Part number CR-HUS View PDF Technical Specs

• Universal design
• VESA compatible
• Fast and easy installation
• Up to 15 degree of continuous tilt and 360 degree rotation
• Pin-locking incremental tilt adjustment
• Post installation screen leveling without use of tools
• Mounts to any 1.5 in. NPT threaded pipe
• Pre-sorted hardware pack for easy installation

• Color: Black
• Typical Screen Size: 32in - 55in
• VESA hole pattern: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
• Maximum load (lb): 200
• Tilt: +20/-0 degrees
• Roll (side to side): 6 degree tool less screen leveling
• Pole compatibility: 1.5in NPT thread
• Finish: scratch resistant epoxy powder coat
• Construction: High-grade cold rolled steel
• Weight: 14.1lb.
• Rotation (yaw): 360 degree
• Box# 1: 15 (LB) / 38 (H) / 11 (W) / 6 (D)
• Warranty: 10 Year
• UPC code: 815885010897
