Desk Mount with Height Adjustable Arm for Monitors up to 10 lbs.

Name: Desk Mount with Height Adjustable Arm for Monitors up to 10 lbs.
Brand: Chief Manufacturing
SKU: C-K1D130
Price: 337.60 USD
Availability: InStock

$337.60

Savings [USD]: $

This height adjustable desk mount supports monitors up to 10 lbs.

Supports monitors with VESA 75x75 or 100x100
Maximum Extension: 25 inches
Height Adjustment: 20 inches
Clamps to surfaces from 0.5 to 2.5 inches
Landscape or Portrait Mounting

Installation Instructions Technical Specifications

Choose your options:

Choose the Mount Color

Black

Silver

Choose from Optional Accessories

200x100 VESA Adapter[Add $28.00]

CPU Adapter (3814269) [non-refundable][Add $99.00]

Tablet Mount[Add $75.00]

Product #: C-K1D130

2 - 3 Weeks

Qty:

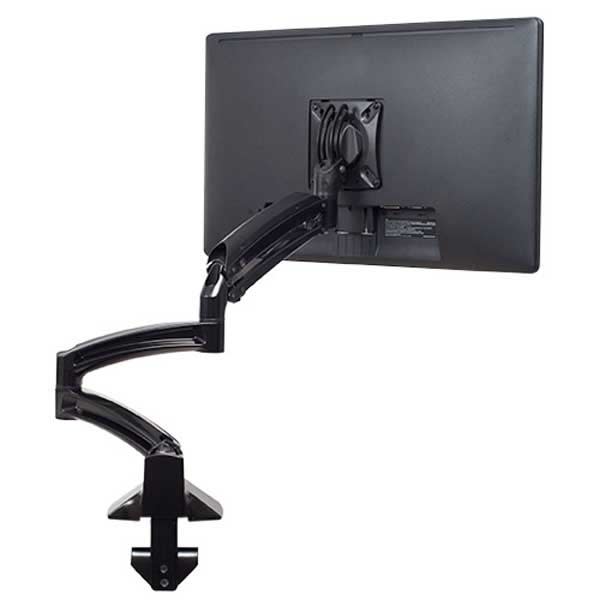

This desk mount with a 3 link height adjustable arm provides a broad range of motion for viewing small flat panel monitors and TVs from multiple angles and heights. This desk mount accommodates screens 10 to 30 inch and up to 25 lbs.

Centris Fingertip Tilt provides smooth tilt adjustment in all directions
Adjustable tension in individual pivot points; touchscreen compatible
Clamp option allows mount to be installed from the top of the mounting surface
Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
Smooth extension to achieve ideal viewing angle
Fingertip height adjustment with customizable tension
Built-in cable management for a clean installation
Clean look with minimal hardware visible from underside of work surface
Easy installation with teardrop hole pattern, ships fully assembled
Portrait and landscape rotation and side-to-side pivot
VESA(R) 75 x 75mm and 100 x 100 mm compliant (interface brackets available for non-VESA(R) compliant displays)

Color: Black
Desktop Thickness Range: 0.5 - 3.5in (13 - 89mm)
Dynamic Height Adjustment: 13.25
Grommet Hole Size Range: 0.38 - 3in (10 - 76mm)
Maximum Extension: 26.38in (670.1mm)
Minimum Depth: 2.19in (55.6mm)
Mounting Pattern Compatibility (Universal Versions): 75 x 75mm ,100 x 100mm
Number of Monitors: 1
Orientation: Landscape, Portrait
Overall Dimensions (H x W x D): 14.0in x 10.0in x 4.2in (356 x 254 x 107mm)
Post-Installation Leveling (Roll): Yes
Shipping Weight: 12.50lb
Solution Type: Universal
Tilt: + 15 degree , - 15 degree
Typical Screen Sizes: 10 - 30in
Weight Capacity: 5 - 25lb (2.3 - 11.3kg)
Note: Mounting surface maximum thickness: 3.2in (81 mm), grommet hole size: 0.38in- 3in (10-76 mm)
